Laboratory furniture — benches, fume hoods, cabinets, reagent racks — must resist daily chemical exposure, mechanical impact, moisture, and corrosion. Powder electrostatic spraying is the standard finish for metal lab furniture. But coating quality varies. Poor quality leads to early failure, safety risks, and high replacement costs.
This article covers:
Key factors affecting powder coating quality for laboratory furniture
Real-world consequences of poor coating (chemical resistance, impact resistance, salt spray test, etc.)
Why Vitallab delivers durable, reliable laboratory furniture

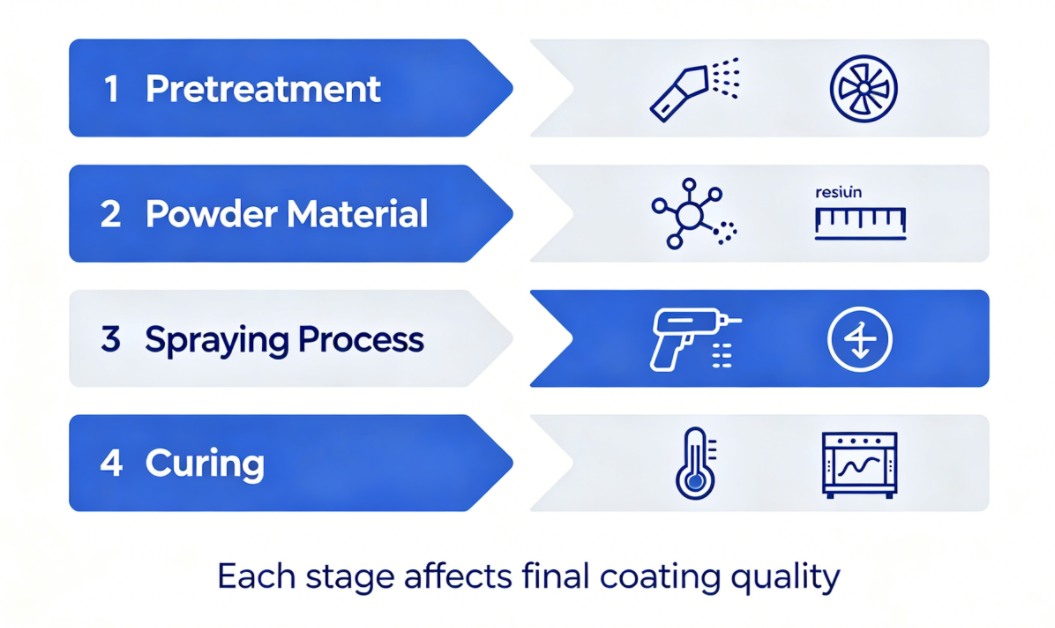

Quality depends on four stages: pretreatment, powder material, spraying process, and curing.
Poor pretreatment is the #1 cause of coating failure.
Incomplete degreasing – Oil residues block adhesion → peeling → early rust in salt spray tests.
Poor phosphating / conversion coating – Weak or uneven phosphate layer reduces anchoring. For aluminum lab furniture, poor chromating means poor adhesion.
Insufficient drying – Residual moisture vaporizes during curing → bubbles and pinholes → poor chemical resistance.
Resin & curing agent – Low-grade or mismatched resins reduce impact and chemical resistance.
Pigment heat stability – Poor stability causes discoloration (yellowing) during curing.
Particle size – Oversized (>80μm) → poor coverage & orange peel; undersized (<20μm) → low transfer efficiency.
Spraying voltage – Too low → poor charging; too high → pinholes from electrical breakdown.
Air pressure – Unstable pressure → uneven coating thickness.
Grounding – Dirty hangers (resistance >1MΩ) → low powder pickup and bare spots.
Booth cleanliness – Dust & recycled powder particles → surface defects (bumps, craters).
Curing temperature and time determine crosslinking density, affecting:
Impact resistance – Under-cured: soft & brittle; over-cured: hard but cracks easily.
Chemical resistance – Incomplete crosslinking leaves coating vulnerable to acids, alkalis, and solvents.
Adhesion & salt spray resistance – Poor curing → rapid rust creepage.
Common issues: temperature too low/short → under-cured; too high/long → over-cured, discolored, brittle; uneven oven temperature → color variation.
Poor coating impacts safety, function, and total cost.
| Performance Issue | Real Consequence |
|---|---|
| Poor impact resistance | Dropped flask chips coating → bare metal corrodes |
| Poor chemical resistance | Acid/alkali spill causes swelling, blistering, or coating failure |
| Poor salt spray resistance | Rust creeps from scratches/edges within weeks, contaminating experiments |
| Poor adhesion | Coating peels during cleaning or normal use |
| Orange peel / pinholes | Rough surface traps residues & bacteria – unacceptable for pharma/clinical labs |
| Color variation | Unprofessional appearance; inconsistent quality control |
Frequent repairs (spot repainting rarely matches original performance)
Safety hazards (sharp corroded edges; chemical penetration)
Higher lifecycle cost (3–5x more in replacements & downtime)
At Vitallab, we engineer laboratory furniture to withstand decades of harsh use. Our powder coating process follows strict quality standards with rigorous process control.
Superior Pretreatment Line
Multi-stage degreasing with deionized water rinse
High-quality zinc-calcium phosphating (steel)
Non-chrome conversion coating (aluminum) – environmentally friendly
Complete drying before powder application – no trapped moisture
Premium Powder Materials
Chemically resistant polyester or epoxy-polyester hybrid powders
Strict particle size control (20–80μm) – smooth, pinhole-free finish
Batch-to-batch consistency verified by spectrophotometer
Precision Electrostatic Spraying
Automated reciprocating guns with voltage & pressure monitoring
Optimized grounding system (resistance <1MΩ) for uniform coverage
Class 10,000 clean spray booth – no particle contamination
Accurate Curing Process
Computer-controlled oven with ±3°C temperature uniformity
Real-time temperature logging per batch (time-temperature curve)
Curing parameters adjusted for different substrate thicknesses – no under/over-curing
Rigorous Quality Testing
Impact resistance – Direct impact test (≥50 kg·cm)
Chemical resistance – Spot tests with 10% H₂SO₄, 10% NaOH, acetone
Salt spray test – ≥500 hours neutral salt spray (ASTM B117), no creepage
Adhesion – Cross-cut test (0–1 rating)
Thickness & gloss – Checked on every batch
Choosing Vitallab means investing in decades of reliable performance. Our coating will not chip from a dropped beaker, will not blister from an acid spill, and will not rust under humidity.
Laboratory furniture coating quality is determined by pretreatment, powder material, spraying precision, and curing control. Variations in any step cause real failures: poor impact resistance, chemical attack, salt spray corrosion, and adhesion loss.
Vitallab eliminates these variables through rigorous process control and comprehensive testing. Choose Vitallab for laboratory furniture that stays safe, clean, and professional – even after years of harsh use.
📧 Contact our team for a free consultation or coating sample.
