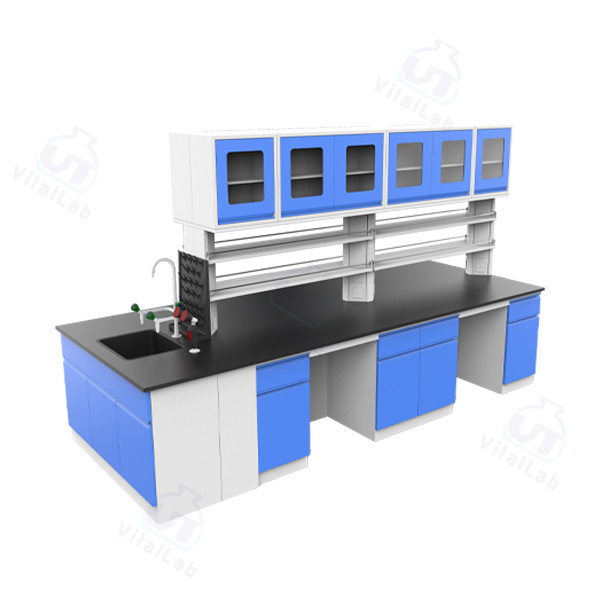

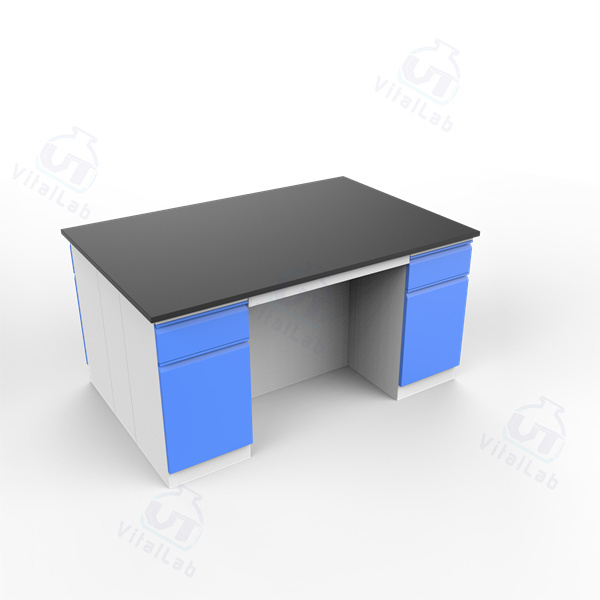

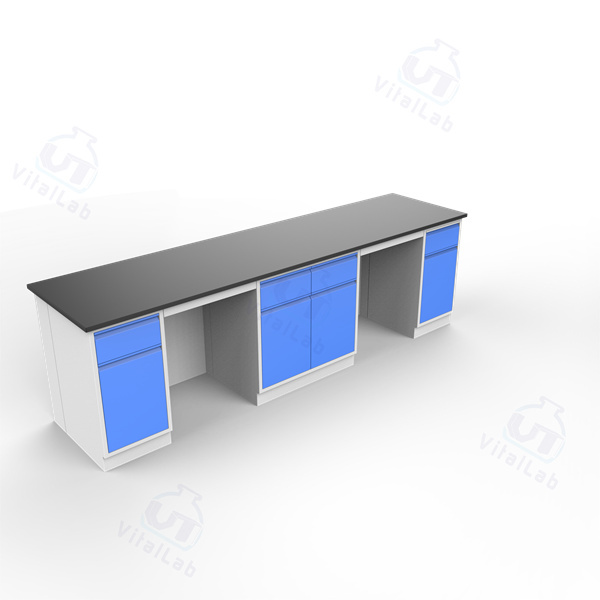

Floor Standing Lab Bench

ADVANTAGE

Dust proof

Strong and durable

Excellent bear ability

Low cost and customized

Excellent bear ability with more 700 pounds per meter

SPECIFICATION

Solid phenolic resin board

Adopts  12.7mm imported solid phenolic resin board with edges thickened to 25.4mm, rounded and polished, in line with ergonomic design. The board is acid and alkali resistant, corrosion resistant, impact resistant, and tough, suitable for high-intensity experimental settings. 16mm, 19mm and 25mm thickness is also available.

Trespa

13mm / 20mm thick TRESPA laboratory top is imported from the Netherlands. The edges are rounded and polished, adhering to ergonomic design. Trespa exhibits features like impact resistance, acid and alkali resistance, corrosion resistance, scratch resistance, easy cleaning, UV resistance, and anti-static properties, making it suitable for high-standard laboratory environments.

Epoxy resin board

15mm / 16mm / 19mm / 25mm Epoxy resin board is formed by one-time molding of epoxy resin, quartz sand, curing agent and pigment. It has characteristics such as high temperature resistance, 24-hour super corrosion resistance, absolute moisture resistance and repairability. It performs excellently under extremely harsh experimental conditions and is suitable for high temperature and high corrosion experimental environments.

Ceramic

15mm / 20mm ceramic main component is natural silicate. Treated with special German-imported corrosion-resistant glaze and calcined at 1250°C by a special process. It has stable properties, non-flammable, excellent flame retardancy, strongest corrosion resistance, better scratch resistance than stone, can withstand 600°C long-term and 1500°C extreme high temperatures, no moisture absorption or deformation, extremely long service life.


CABINE&ACCESSORIES

Cabinet: Full 1.0mm thick cold-rolled steel plate is finely crafted via cutting, bending, welding, stamping, and polishing. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance. To make thickness reach to 1.1mm - 1.2mm. This treatment method makes the body has good corrosion resistance and stability ability.

Connecting beam: 30*60*1.5mm thickness strong cold-rolled steel front beam, 16*100*1.5mm thickness cold rolled steel back beams. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance.

Back panel: 1.0mm thick high-quality cold-rolled steel plate is used as the base material, and the surface is phosphated, pickled, epoxy resin powder paint treated, and chemically rust-proofed. It also adopts a movable structure and is installed with embedded nuts. It is easy to disassemble and assemble, and is convenient for the maintenance of water, electricity, gas and other pipelines.

Handle: Non-welded one line handle/C-shaped handle/Insertion Aluminum alloy handle/ U-shaped handle.

Slide: DTC 18 inch double fold full pull-out with positioning and anti slip protection silence slide, with 45kgs bear ability.

Hinge:Using high-quality alloy hinges with an opening degree of 110 °. (Pulling bolt hinge: Using a φ 5 galvanized alloy rod, nylon sheath, and φ 6 spring pulling bolt hinge, concealed installation, to maintain the overall appearance of the door panel and avoid corrosion caused by direct contact with acidic and alkaline solutions.

Footing: Stainless steel/nylon adjustable feet with 30mm adjustable height range, it has primary shock absorption function and good load-bearing capacity.

STANDARD DIMENSIONS

VARIOUS UNDERNEATH CABINET

VARIOUS HARDWARE ACCESSORIES

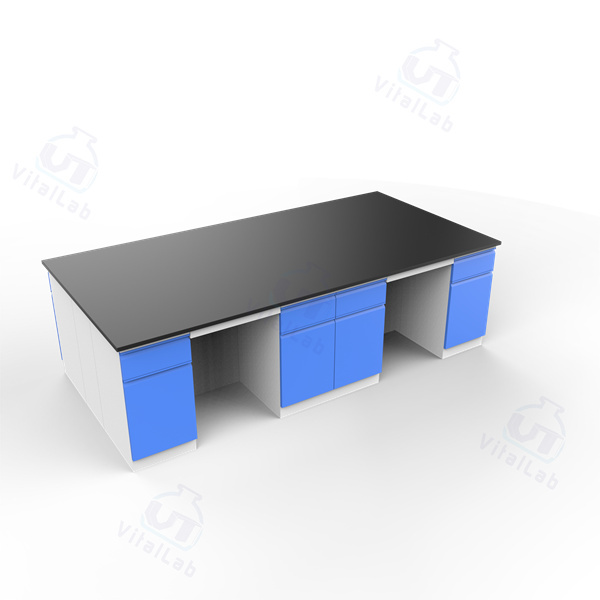

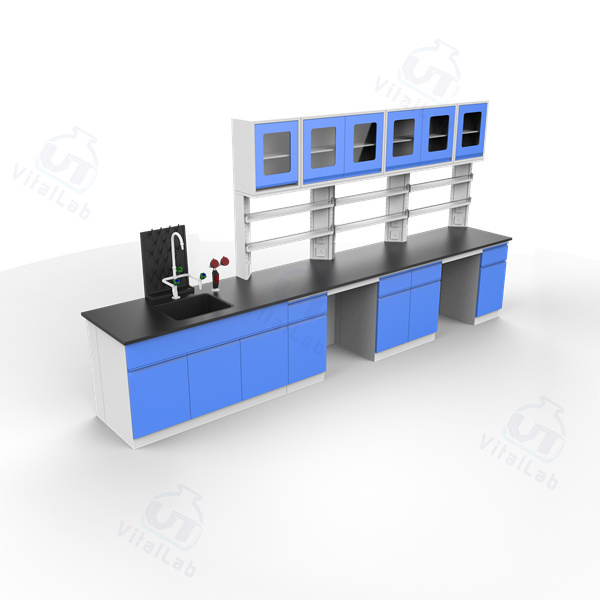

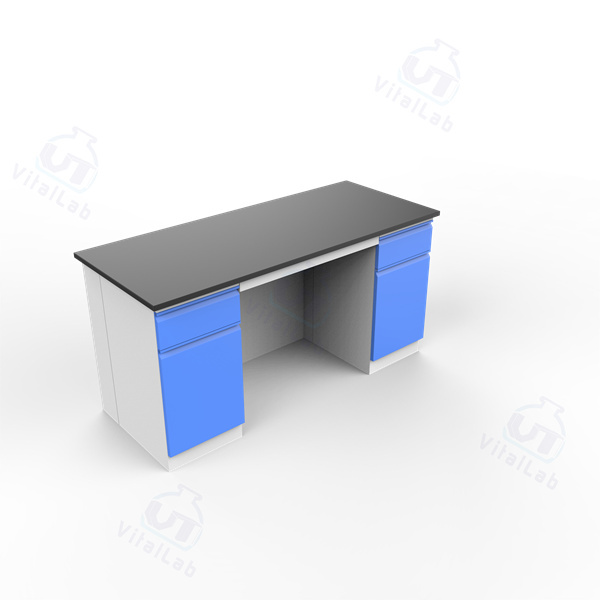

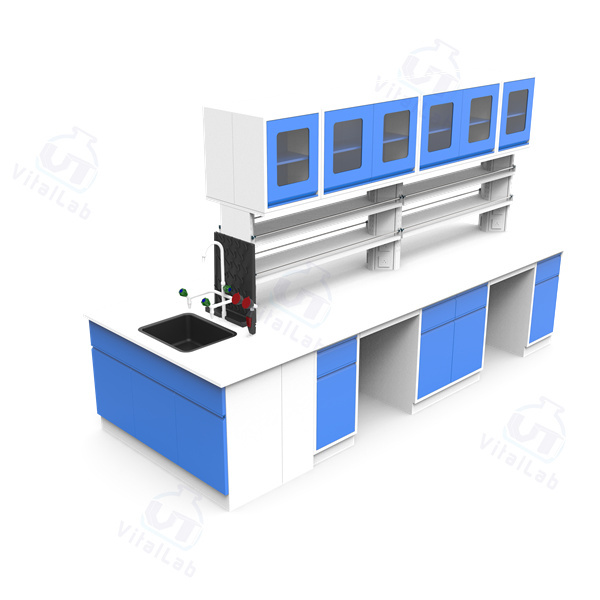

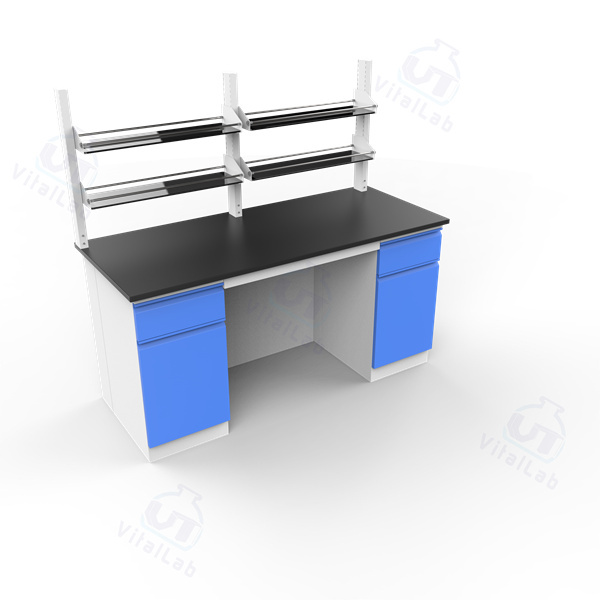

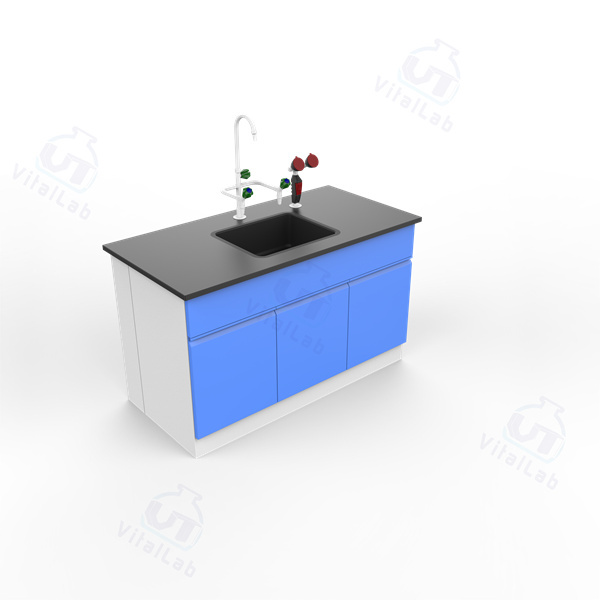

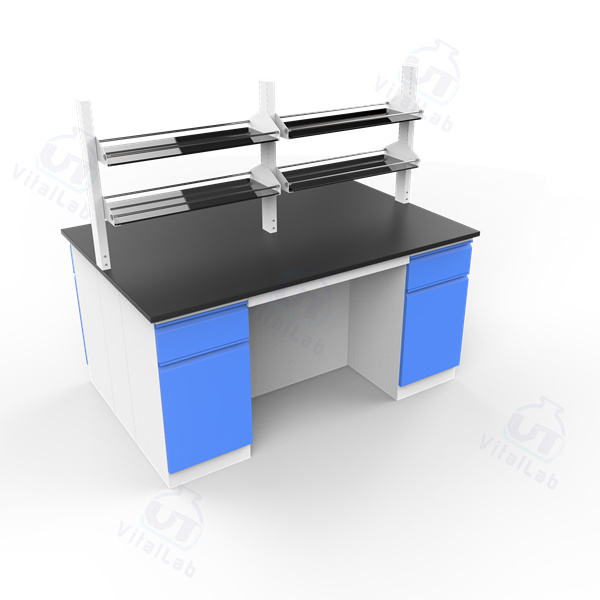

MORE MODEL

FLOOR STANDING LAB CASE
