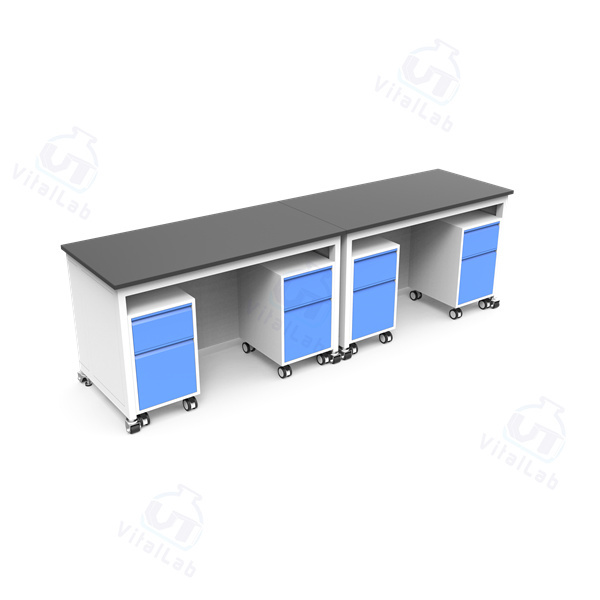

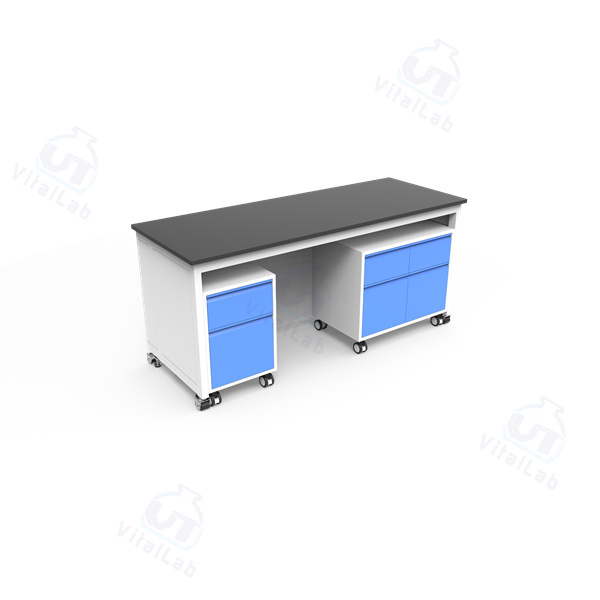

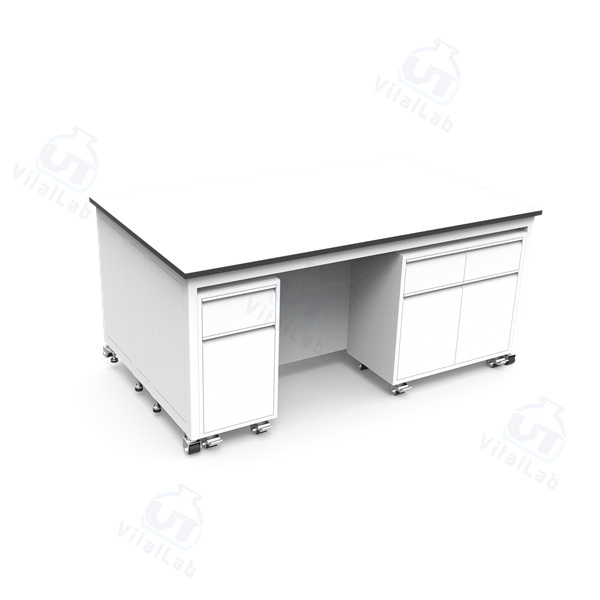

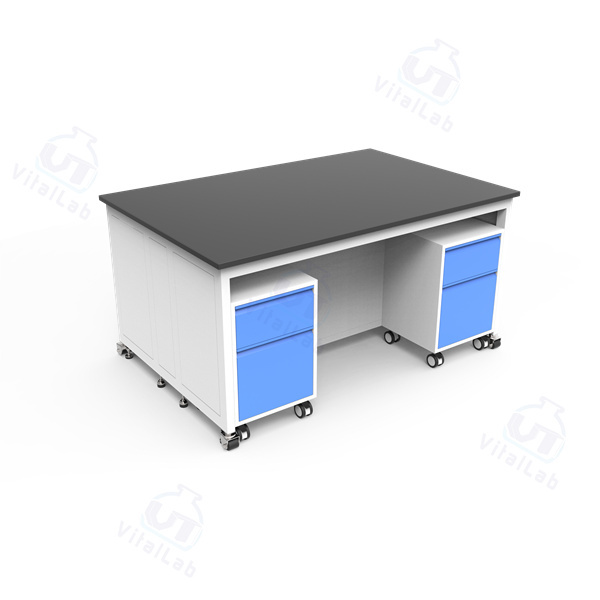

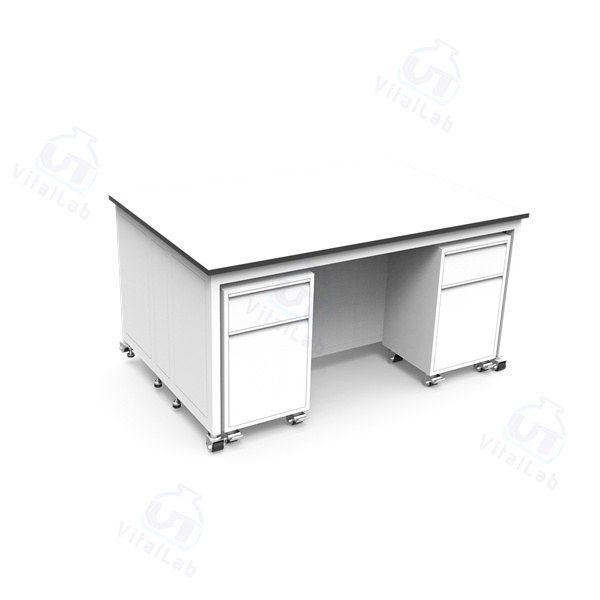

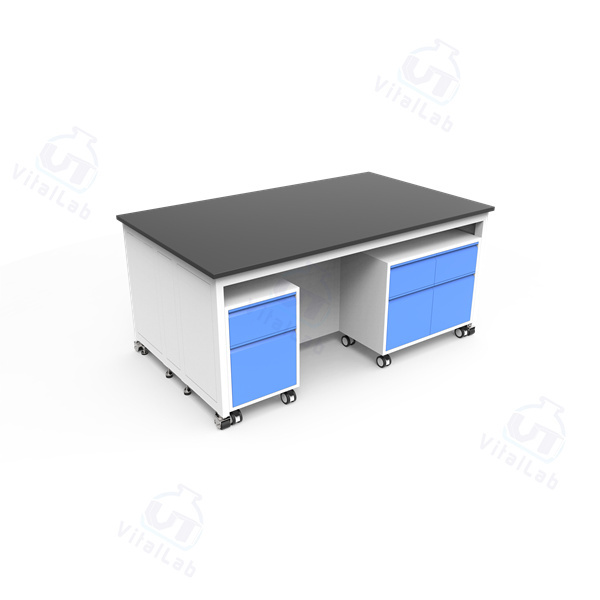

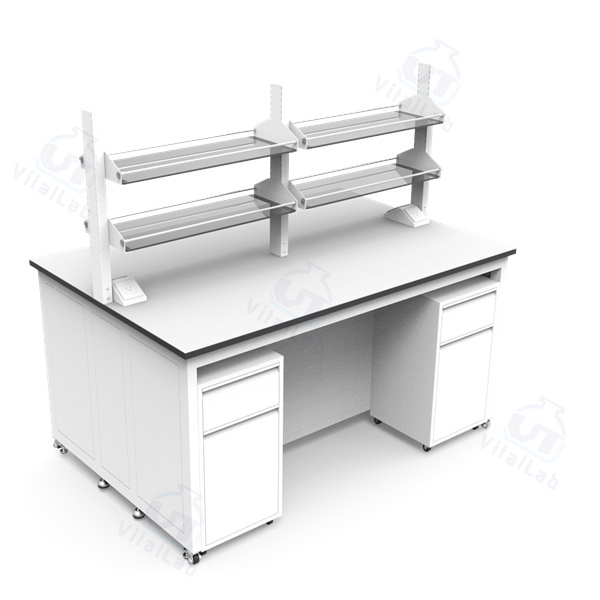

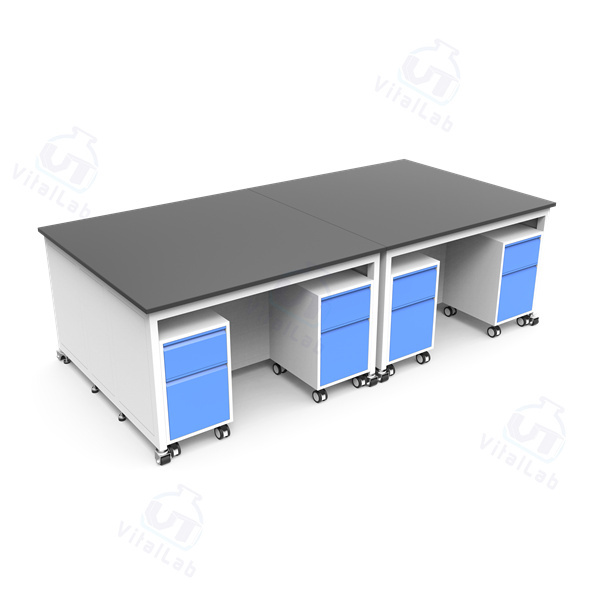

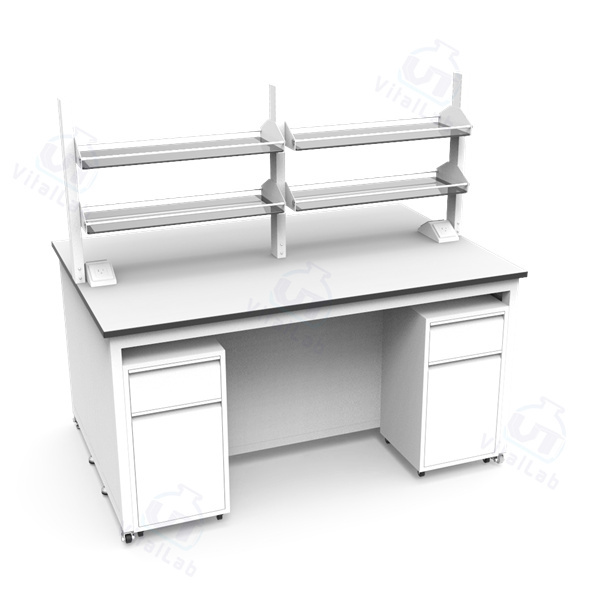

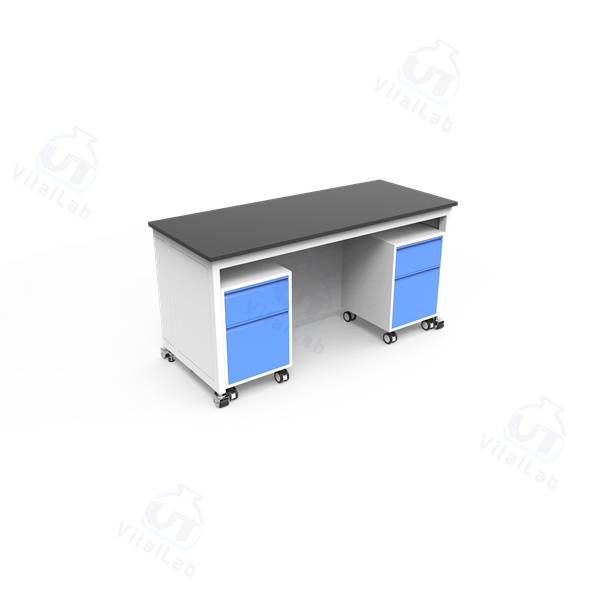

Modular Mobile Lab Bench H type - Mobile steel frame mobile cabinet

Solid phenolic resin board

Adopts  12.7mm imported solid phenolic resin board with edges thickened to 25.4mm, rounded and polished, in line with ergonomic design. The board is acid and alkali resistant, corrosion resistant, impact resistant, and tough, suitable for high-intensity experimental settings. 16mm, 19mm and 25mm thickness is also available.

Trespa

13mm / 20mm thick TRESPA laboratory top is imported from the Netherlands. The edges are rounded and polished, adhering to ergonomic design. Trespa exhibits features like impact resistance, acid and alkali resistance, corrosion resistance, scratch resistance, easy cleaning, UV resistance, and anti-static properties, making it suitable for high-standard laboratory environments.

Epoxy resin board

15mm / 16mm / 19mm / 25mm Epoxy resin board is formed by one-time molding of epoxy resin, quartz sand, curing agent and pigment. It has characteristics such as high temperature resistance, 24-hour super corrosion resistance, absolute moisture resistance and repairability. It performs excellently under extremely harsh experimental conditions and is suitable for high temperature and high corrosion experimental environments.

Ceramic

15mm / 20mm ceramic main component is natural silicate. Treated with special German-imported corrosion-resistant glaze and calcined at 1250°C by a special process. It has stable properties, non-flammable, excellent flame retardancy, strongest corrosion resistance, better scratch resistance than stone, can withstand 600°C long-term and 1500°C extreme high temperatures, no moisture absorption or deformation, extremely long service life.


FRAME&ACCESSORIES:

Cabinet: Full 1.0mm thick cold-rolled steel plate is finely crafted via cutting, bending, welding, stamping, and polishing. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance. To make thickness reach to 1.1mm - 1.2mm. This treatment method makes the body has good corrosion resistance and stability ability.

Frame: 40*60*1.5mm thickness cold rolled steel rectangle tube treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance C or H frame

Connecting beam: 30*60*1.5mm thickness strong cold-rolled steel front beam. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance.

Back panel: 1.0mm thick high-quality cold-rolled steel plate is used as the base material, and the surface is phosphated, pickled, epoxy resin powder paint treated, and chemically rust-proofed. It also adopts a movable structure and is installed with embedded nuts. It is easy to disassemble and assemble, and is convenient for the maintenance of water, electricity, gas and other pipelines.

Handle: Non-welded one line handle/C-shaped handle/Insertion Aluminum alloy handle/ U-shaped handle.

Slide: DTC 18 inch double fold full pull-out with positioning and anti slip protection silence slide, with 45kgs bear ability.

Hinge:Using high-quality alloy hinges with an opening degree of 110 °. (Pulling bolt hinge: Using a φ 5 galvanized alloy rod, nylon sheath, and φ 6 spring pulling bolt hinge, concealed installation, to maintain the overall appearance of the door panel and avoid corrosion caused by direct contact with acidic and alkaline solutions.)

Wheel: 360 degree rotate steel wheel, a wide variety of wheels can be selected according to operational requirements.


OPTION MDF WOOD CABINET UNIT

Use E1 grade 18mm thickness double-sided high-quality environmentally friendly melamine door & drawer panel and 15mm thickness main body; all edges are treated with 2mm thickness high-quality PVC sealing for waterproofing, and all panels are connected by detachable three-in-one connection. It has a stable structure, good load-bearing performance and is easy to dismantle, which is conducive to use in the special working environment of the laboratory.

ADVANTAGE

Flexibility: Users can freely combine and adjust them according to laboratory needs and space, enabling quick adaptation to diverse experimental demands.

Scalability: The laboratory can incrementally add or replace modules as required to handle equipment upgrades or project expansions, enhancing the platform's long-term value.

Efficiency: Components are designed for swift and precise assembly, boosting overall work efficiency.

Space Optimization: Users can adjust module configurations based on laboratory layout and usage, maximizing space utilization and effectively addressing various space constraints.

Easy Maintenance and Replacement: With independent modular components, only specific modules need attention during maintenance or replacement, simplifying upkeep, reducing costs, and facilitating upgrades.

Multifunctionality: The modular platform can be flexibly configured for different experiments. Each module operates independently, allowing users to add or remove functional modules as needed.

Flexibility: Users can adjust modules according to laboratory needs and space, enabling a variety of experiments. This adaptability allows for customization to meet research demands.

Scalability: Labs can add or replace modules for upgrades, maintaining technological edge and increasing long-term value.

Efficiency: Quick assembly of components improves work efficiency, letting researchers focus on experiments rather than setup.

Space Optimization: Users optimize module setups, considering space limitations, to make efficient use of available space.

Easy Maintenance & Replacement: Independent modules simplify upkeep and replacement. Malfunctions or upgrades can be handled without disrupting the whole lab.

Multifunctionality: The modular platform supports diverse experiments. Its independent modules can be configured for different setups and research goals.

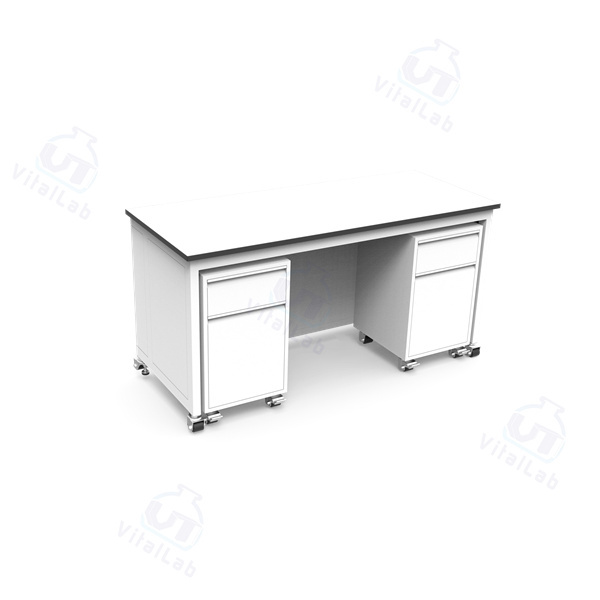

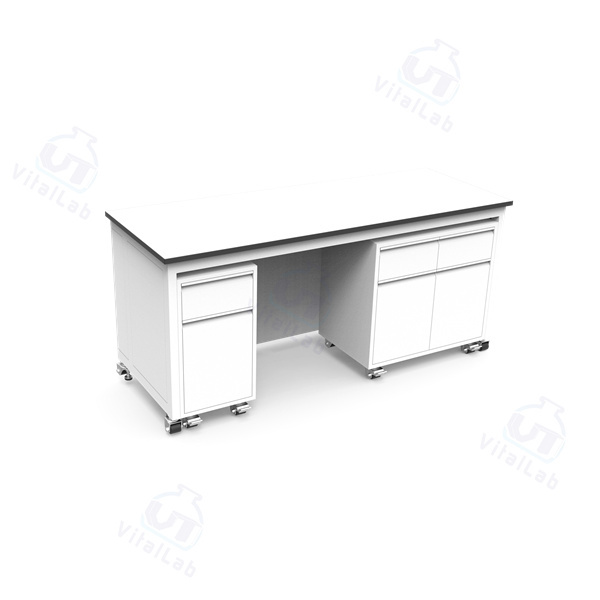

STANDARD SIZE

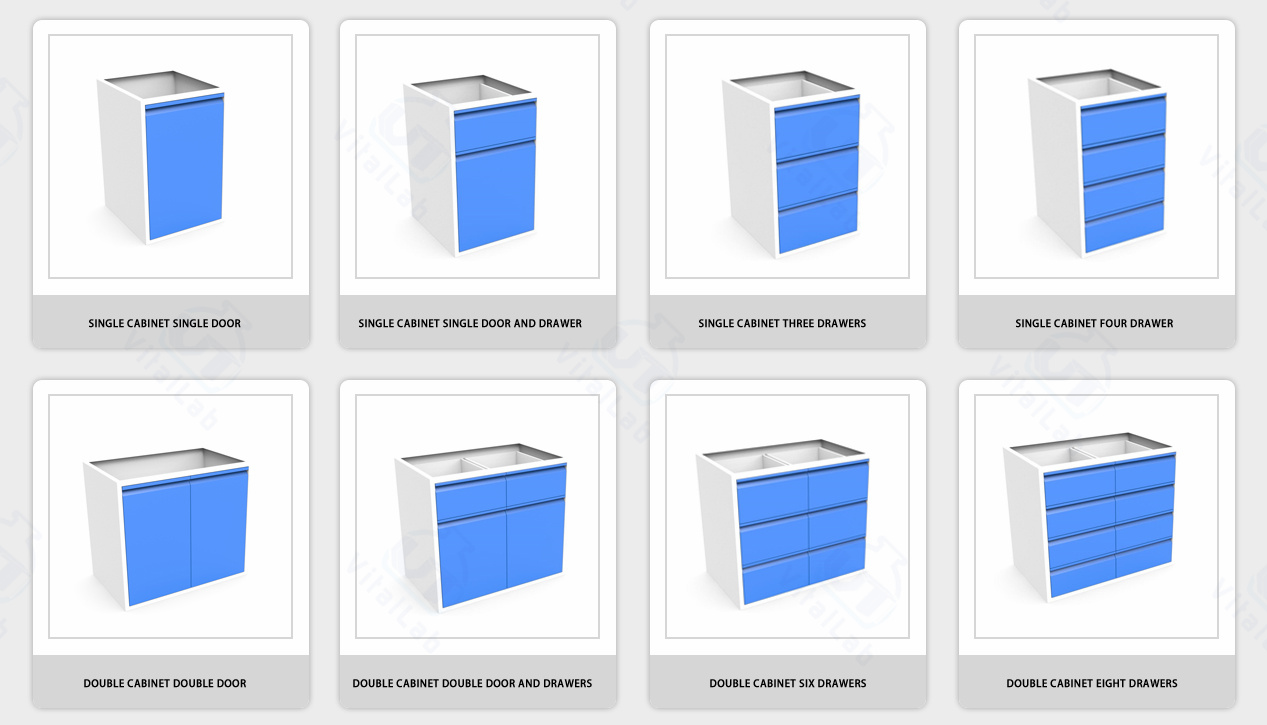

VARIOUS UNDERNEATH CABINET

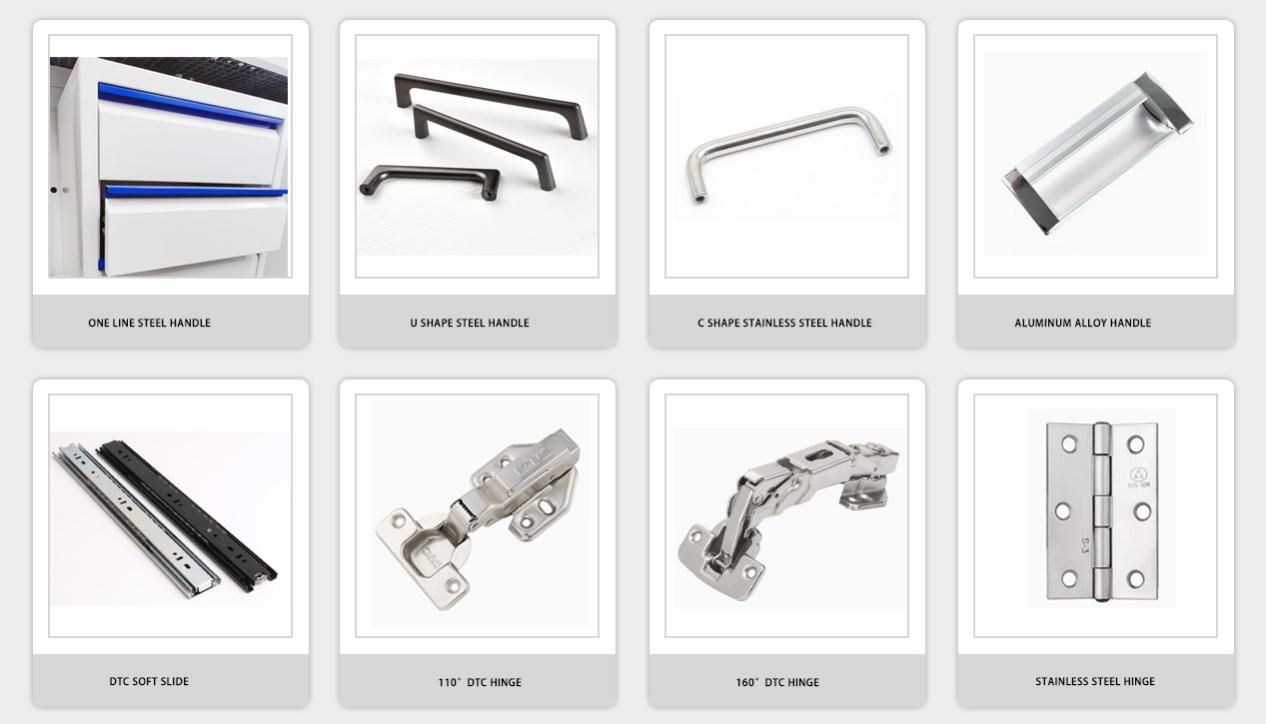

VARIOUS HARDWARE ACCESSORIES

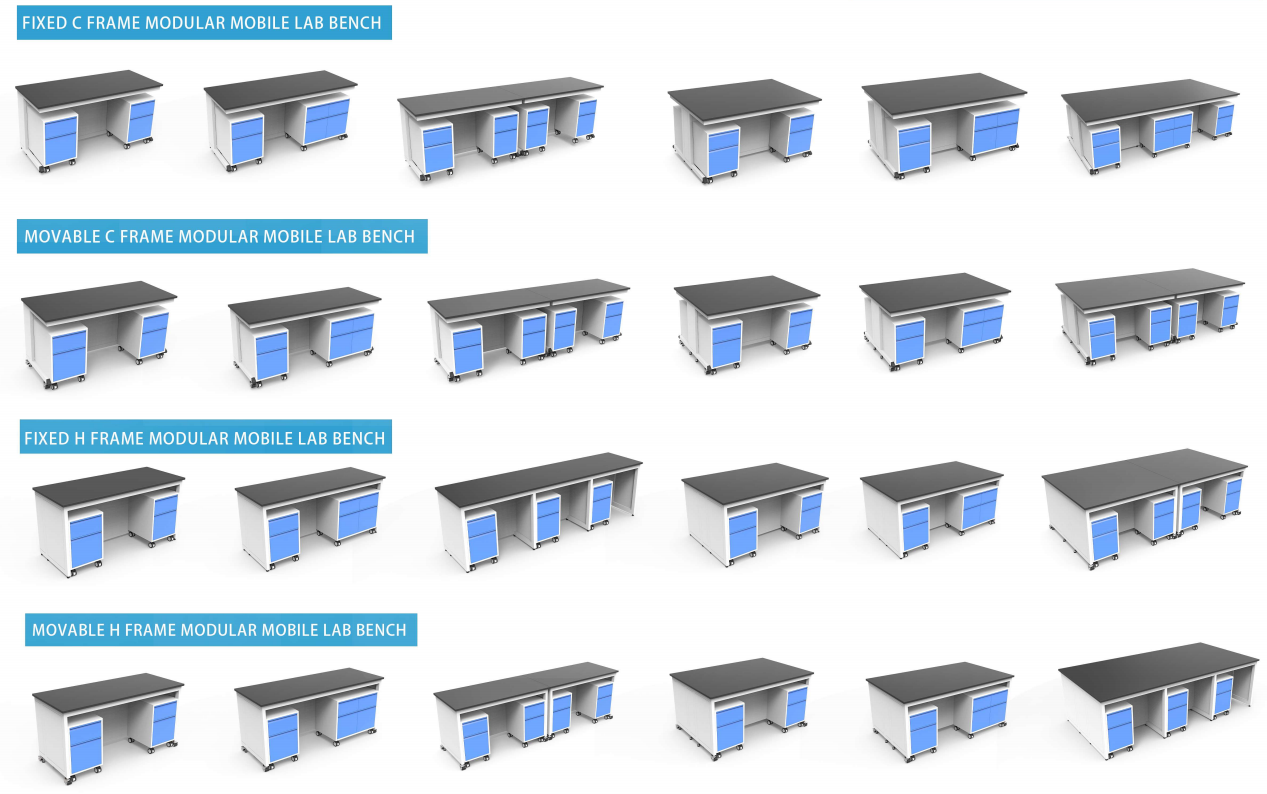

MORE MODEL

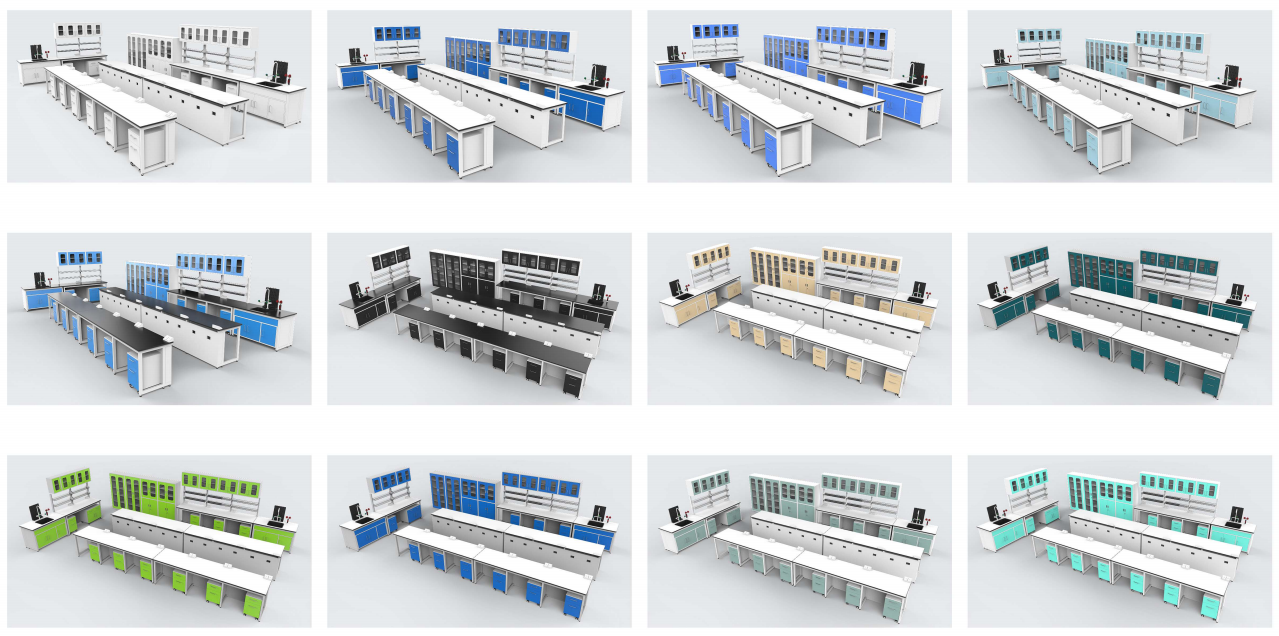

 MODULAR MOBILE LAB CASE
