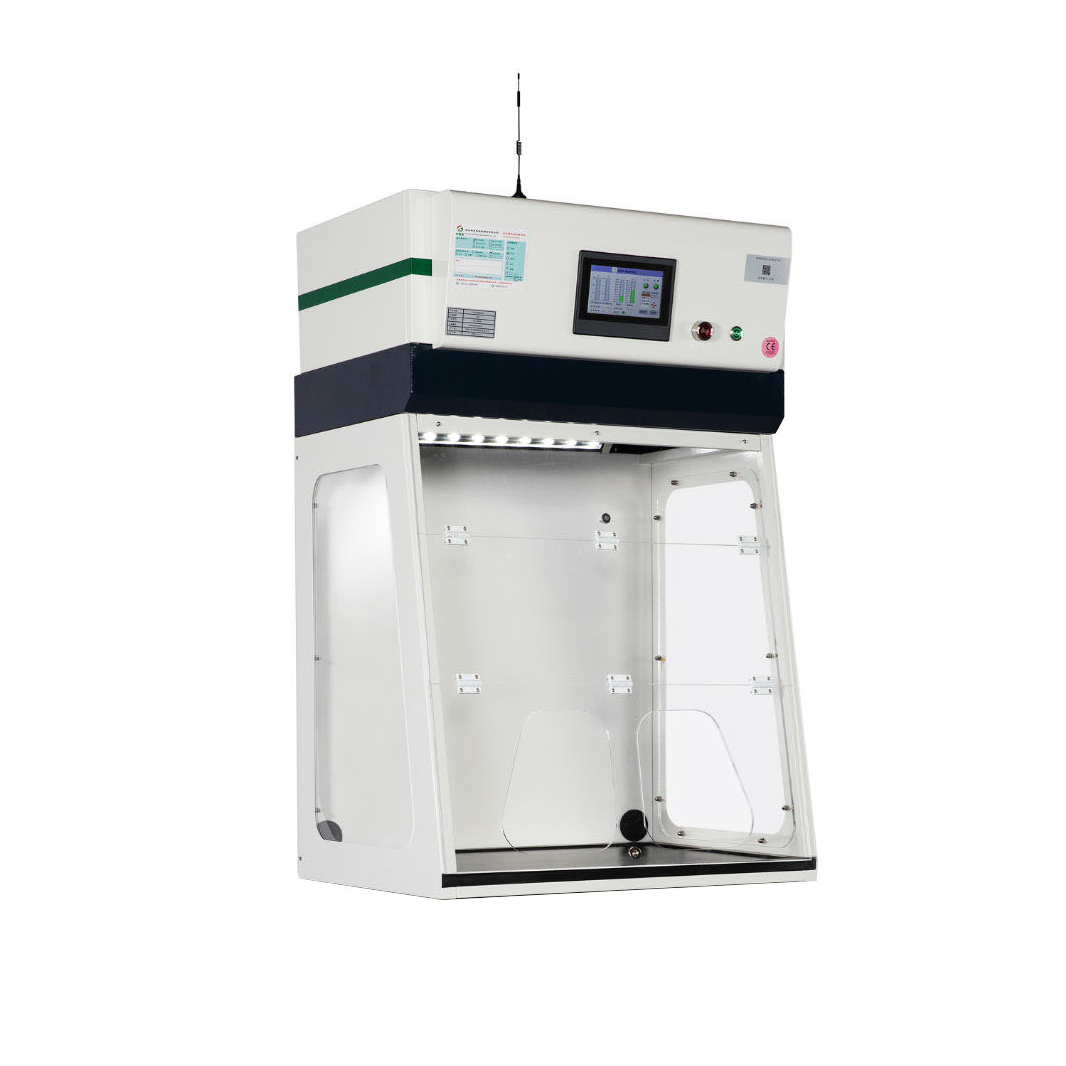

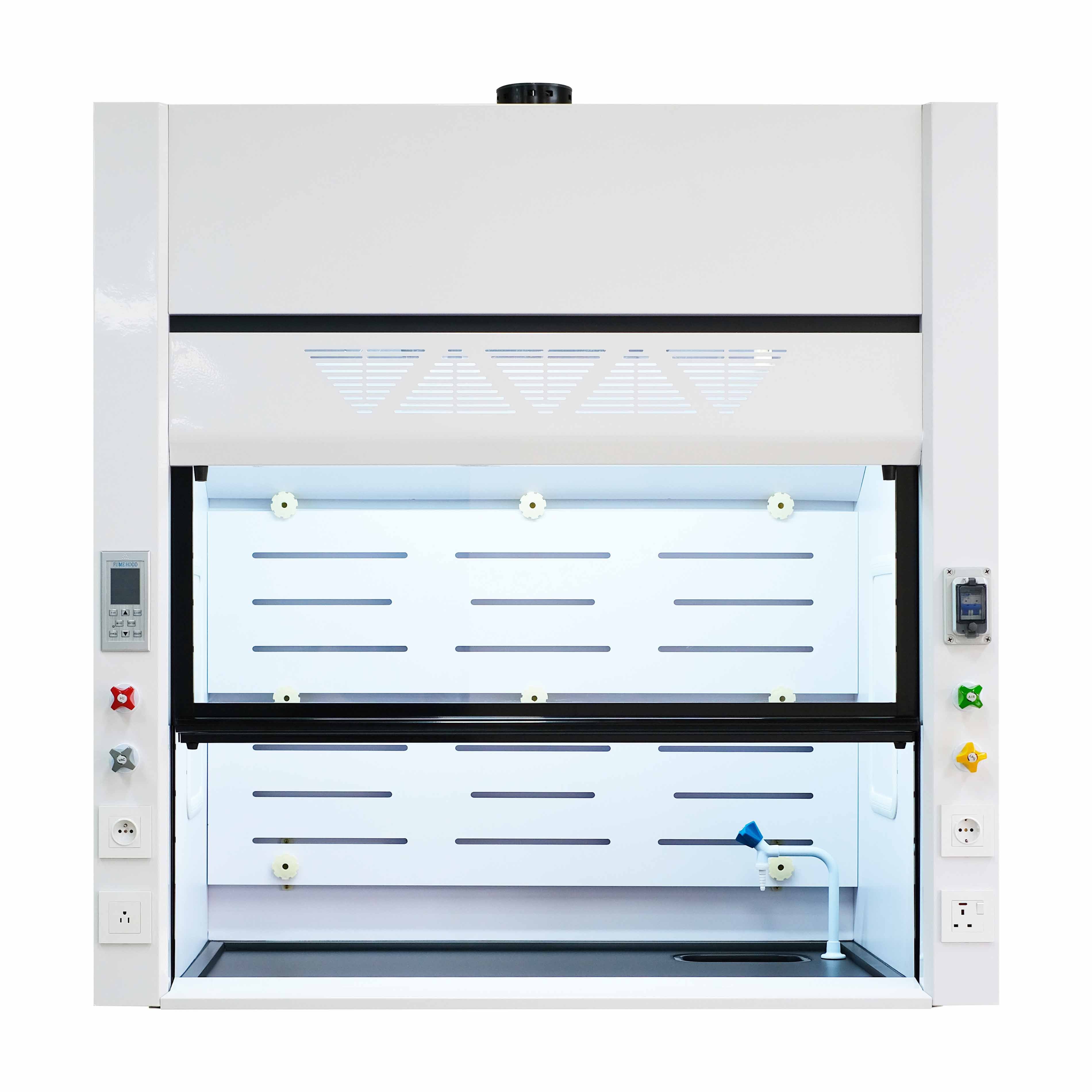

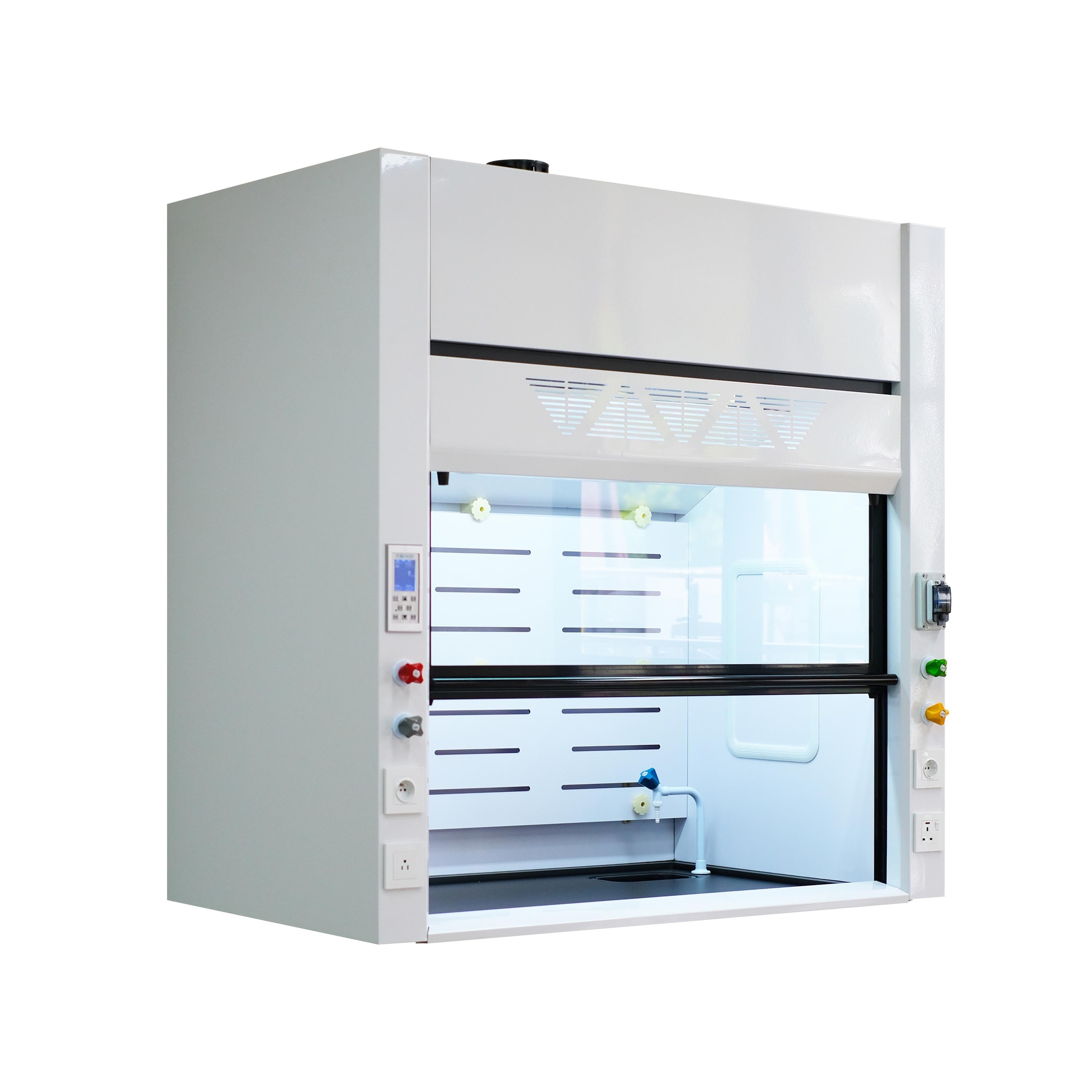

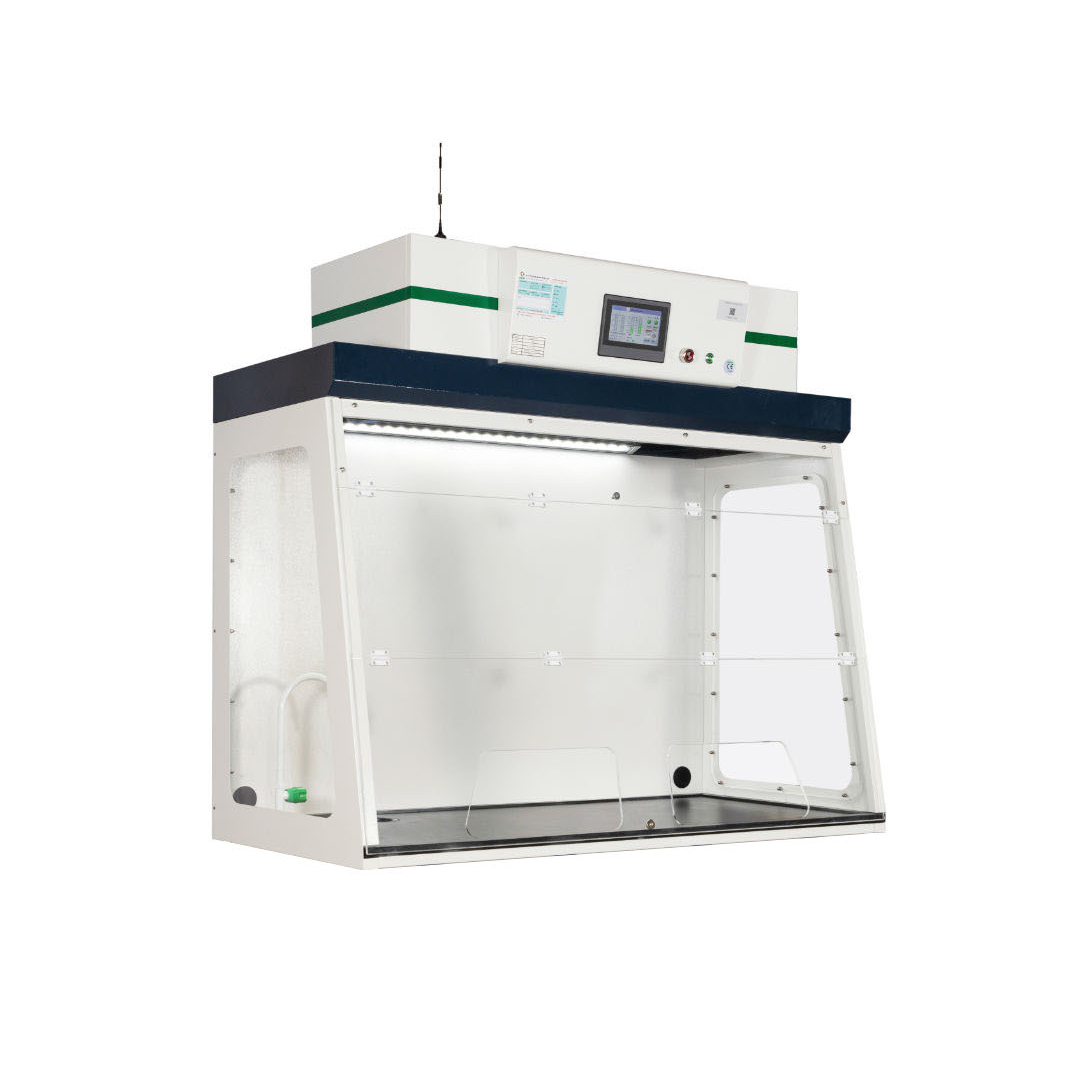

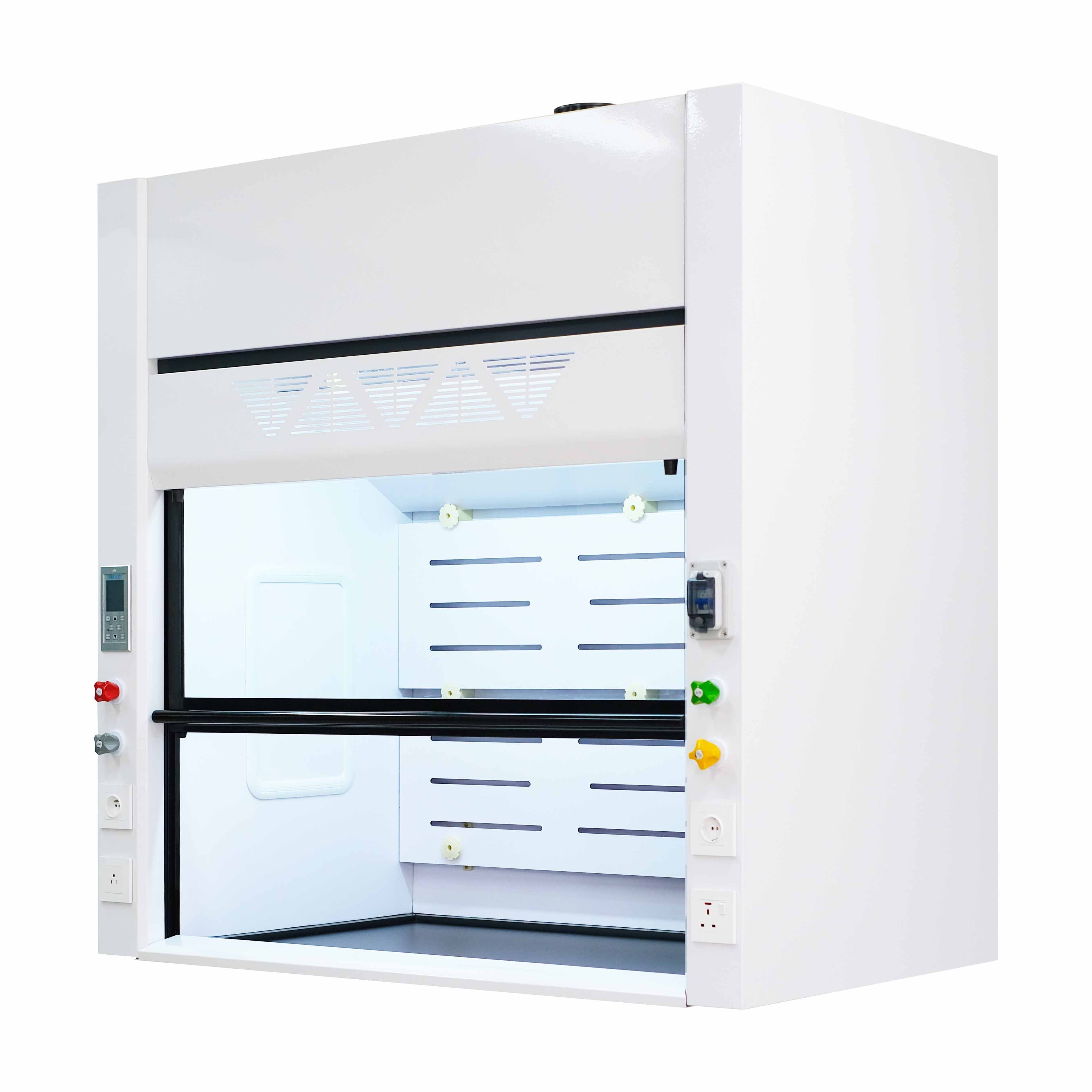

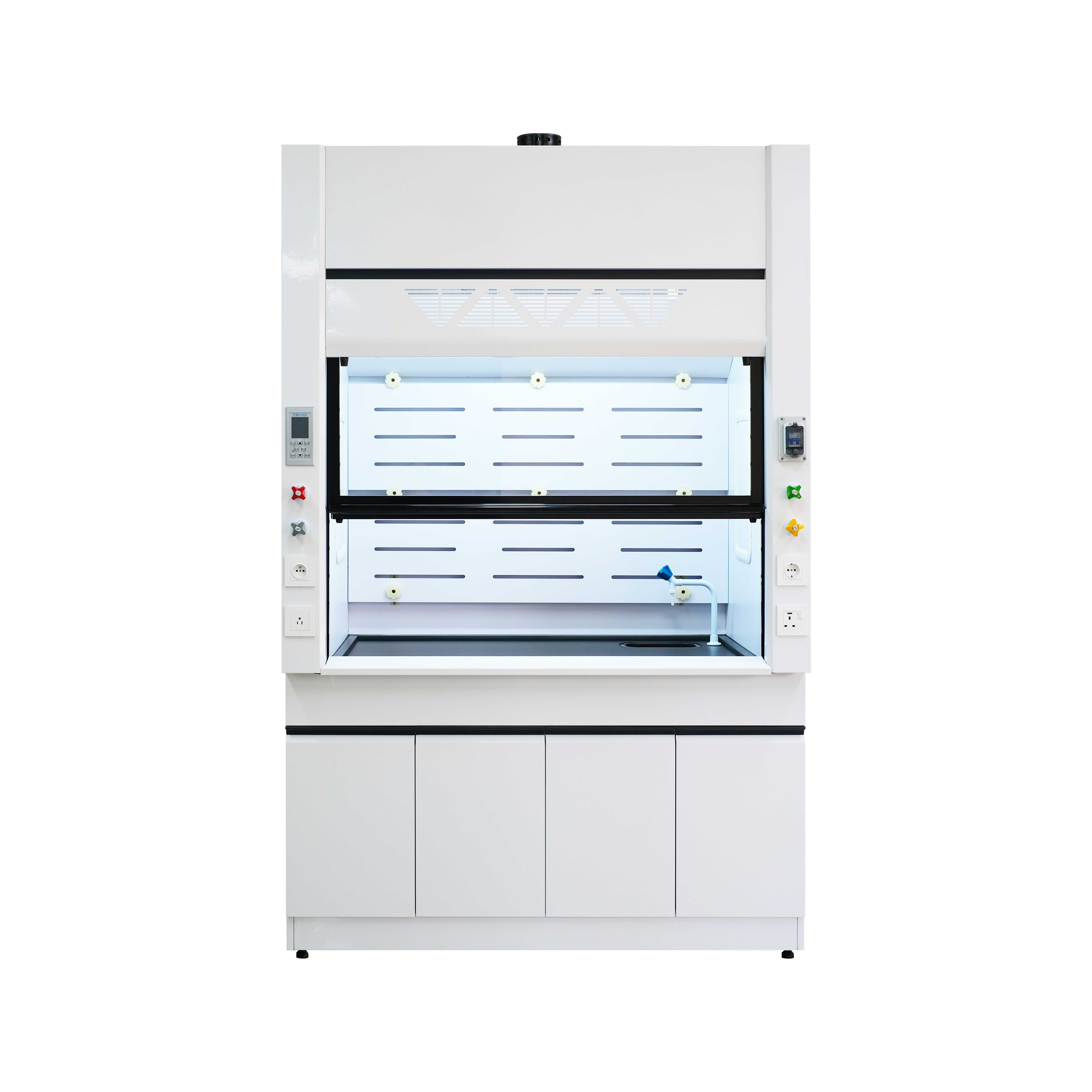

Name: Small Benchtop Biosafety Fume Hood with Duct Cheap Price Table Top Fume Hoods on Sale
Brand: VITALLAB
Availability: InStock
Rating: 5 (1 reviews)

DESCRIPTION

Key attributes

material

Metal

application

Hospital, School, Workshop, Lab, Factory, Institute, Industry, Plant

design style

Modern

mail packing

Plywood case

type

Laboratory Furniture

general use

Commercial Furniture

place of origin

Guangdong, China

Name

Fume Hood

Usage

Chemistry/Physics/Biology

Material

All-steel/PP/Wooden/Stainless steel

Exhaust air volume

700-2100m³/h

Air Velocity

0.3~0.8 m/s

Dimension

1200/1500/1800*850*1500mm/Customized

Standard accessories

Electrical Outlets/PP hood(Option:Water tap/cupsink)

Liner&Baffle

Use 5mm Compact grade laminate

Glass sash

Use explosion-proof 5mm tempered glass

Classification

Floor-Mounted/Walk-in/Bentop

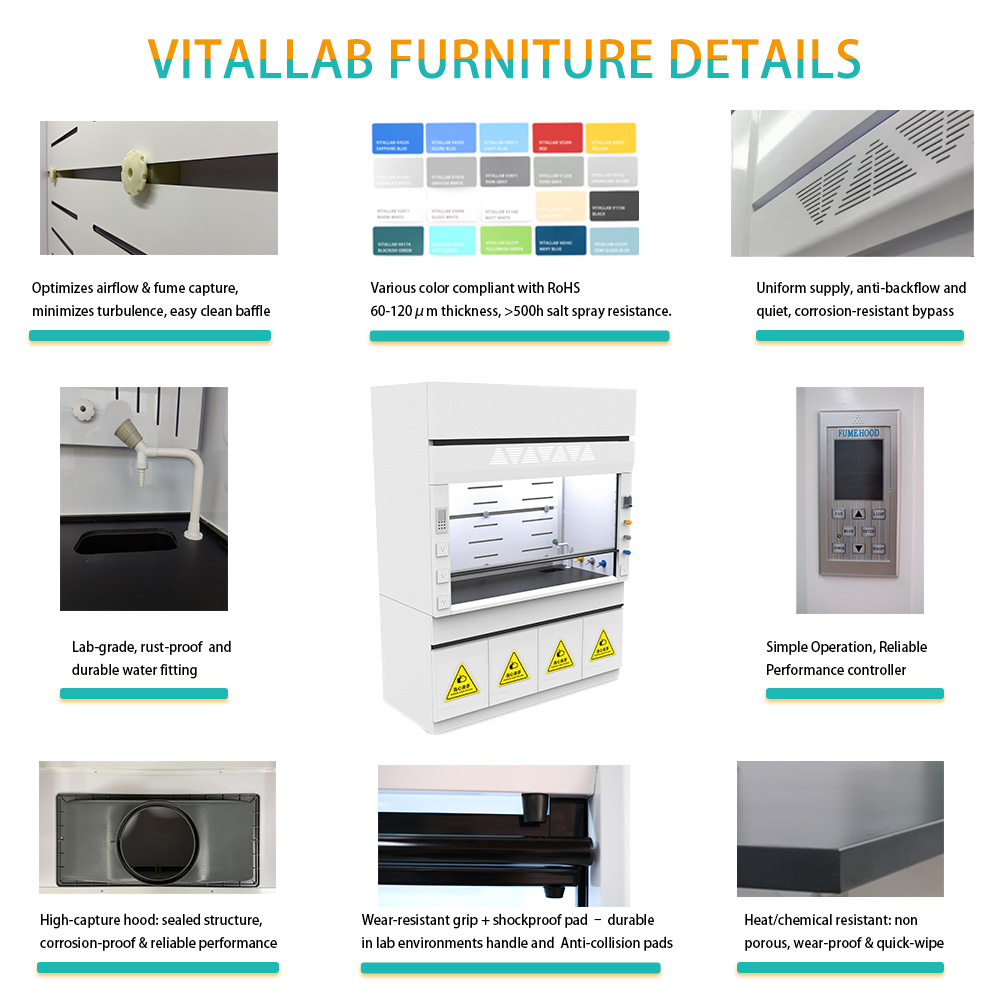

1.Hood body: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature. and the surface is smooth, with a thickness of up to 1.15mm~1.2mm.

2.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc..3.Glass sash: Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.4.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.5. Fume hood liner liner and Baffle: Use 5mm Compact grade laminate, baffle fixed with PP material6. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.7. Standard accessories: 4x Electrical Outlets1x 250 or 315mmφ PP hood8.Optional accessories: PP oval cupsinkRemote Controlled Fixture gas&water faucetExplosion-proof lightDistillation Grid KitDuctworkExhaust blower

Model	FH-120	FH-150	FH-180
External Dimension *(WDH)(mm)*	*12008501500*	*15008501500*	*18008501500*
Internal Dimension *(WDH)(mm)*	*9606801150*	*12606801150*	*15606801150*
Base Cabinet Dimension *(WDH)(mm)*	*1200800850* (Can remove)	*1500800850* (Can remove)	*1800800850* (Can remove)
Exhaust air volume	700-1300m³/h	900-1700m³/h	1300-2100m³/h
Air Velocity	0.3～0.8 m/s

Cabinet Material

1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the thickness of up to 1.15mm~1.2mm. The cabinet door
is double-layered inside and outside, filled with sound insulation material.

Glass sash

Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.

Baffle

Use 5mm Compact grade laminate, fixed with PP material.Three-stage design, there is no blind angle of airflow in the cabinet, and all the toxic and harmful gases of different specific gravity generated during the experiment can be discharged out of the cabinet.

Liner

Use 5mm Compact grade laminate, its structure has a pressure release effect on explosive.

Air foil

Aerodynamic curve allows air to sweep the work surface maximizing containment. Reduces energy consumption by 7-10% compared to flat air foils.

By-pass Hole

By-pass airflow design with variable air volume compatibility. Compensating opening that maintains a relatively constant volume exhaust through a Fume Hood regardless of sash position and that functions to limit the maximum face velocity as the sash is lowered.

Lighting

Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.

Service access

Removable service access on both sides for easy installation and maintenance of circuits, gas circuits and other accessories.

Controller

Intelligent button or touch screen with digital display, multiple controls power on, fan, lighting, socket, sterilization, damper,
etc.

Junction box

The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.

Work Surface (Optional)

Phenolic Resin/Epoxy Resin/PP/Stainless Steel/Ceramic/Granite/Marble.

Crash pad

Effectively prevent impact damage and reduce noise.

Glass Sash Chute

Effectively prevent the window from shaking back and forth and protect the door frame.

Sash Weight Chute

Effectively reduce shaking during operation, reduce noise, and avoid damage during transportation.

Exhaust hood

Used PP material and one-piece molded and top outlet pipe diameter is Ф250/315mm

Electric Outlet

Each national standard electric outlet is available

Water Tap& Sink (Optional)

1x Bench-mounted single water tap

1x PP oval cupsink

1x PP material anti-siphon bottle trap

Remote control system (Optional)

Interior mounted hole for gas, air, water, vacuum and other services have remote control knobs on the corner posts for use regardless of sash position. Prepared for up to two fixtures on each side (Four total). More than four fixtures are available.

RFQ
Q: Are you a factory or trade company?

A: Direct factory. Relying on largest lab manufacturer creates competitive price, build safe, functional laboratories at the most economical cost.

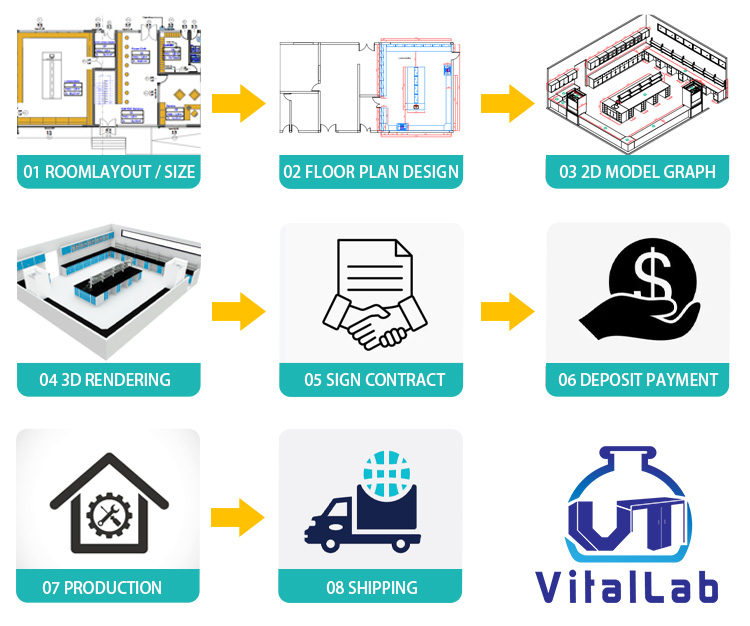

Q: May I have my own design?
A: Yes, welcome. If you have your own design, please kindly send the Layout or plan to us. The designer team will make 3D drawings and Rendering drawings.

Q: Can I customize the size and color?
A: Yes, of course. Custom sizes and colors are available, customized according to customer needs.

Q: What are the payment terms?

A:T/T , Alibaba trade assurance, L/C, or by the West Union.

Q: What is the delivery time?
A: Standardized production lines, sufficient inventory of module products, complete production in the fastest time, and the
delivery time is 30% faster than that of peers.

Q: Do you have certifications for your products?
A: Yes, We have CE, ISO9001, ISO14001, OHSASI18001 and so on.

Model	FH-120	FH-150	FH-180
External Dimension *(WDH)(mm)*	*12008501500*	*15008501500*	*18008501500*
Internal Dimension *(WDH)(mm)*	*9606801150*	*12606801150*	*15606801150*
Base Cabinet Dimension *(WDH)(mm)*	*1200800850* (Can remove)	*1500800850* (Can remove)	*1800800850* (Can remove)
Exhaust air volume	700-1300m³/h	900-1700m³/h	1300-2100m³/h
Air Velocity	0.3～0.8 m/s
