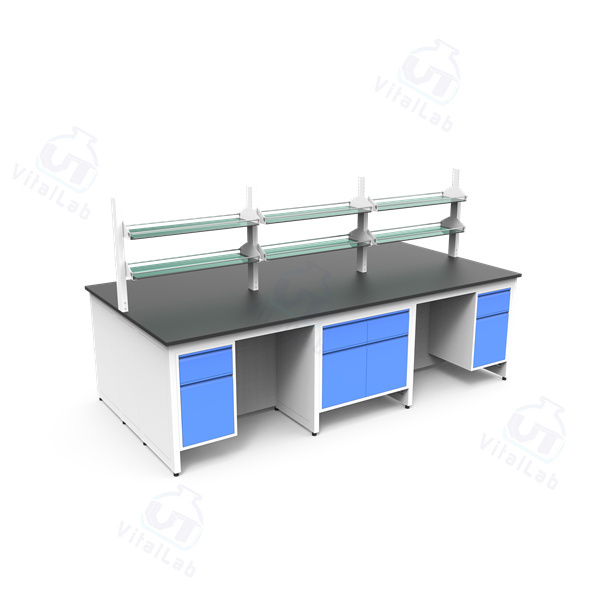

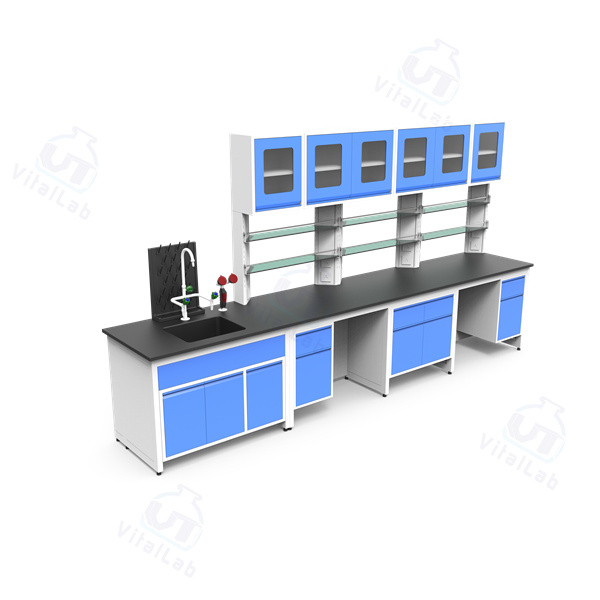

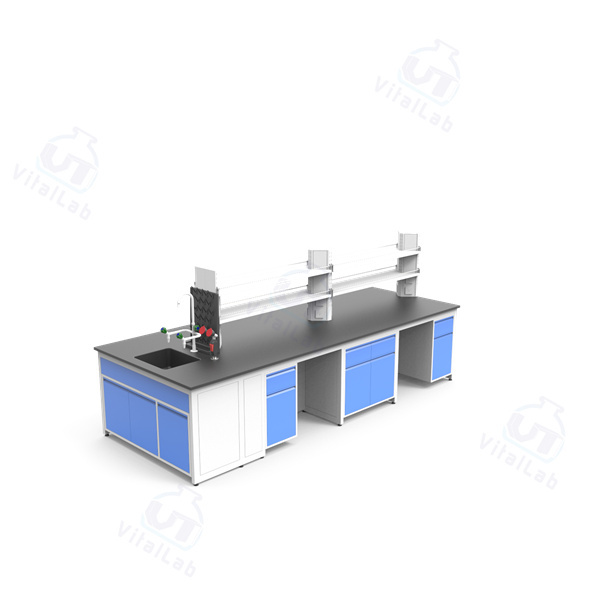

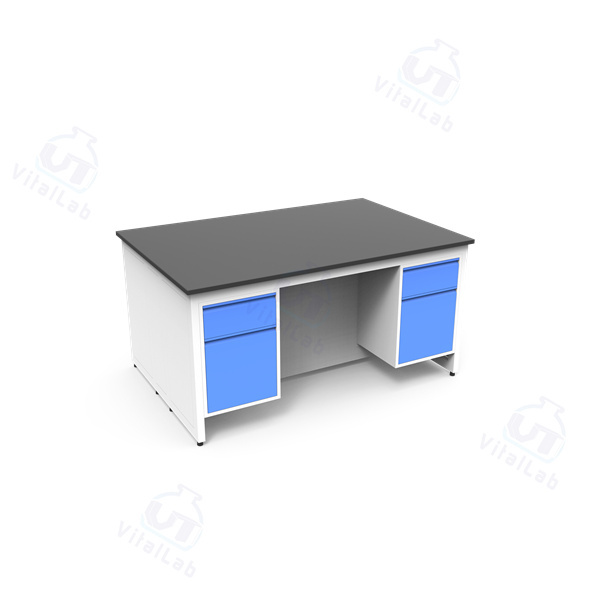

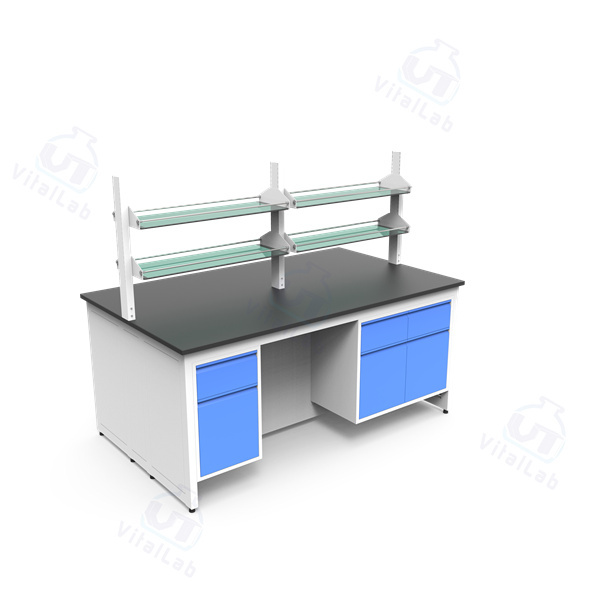

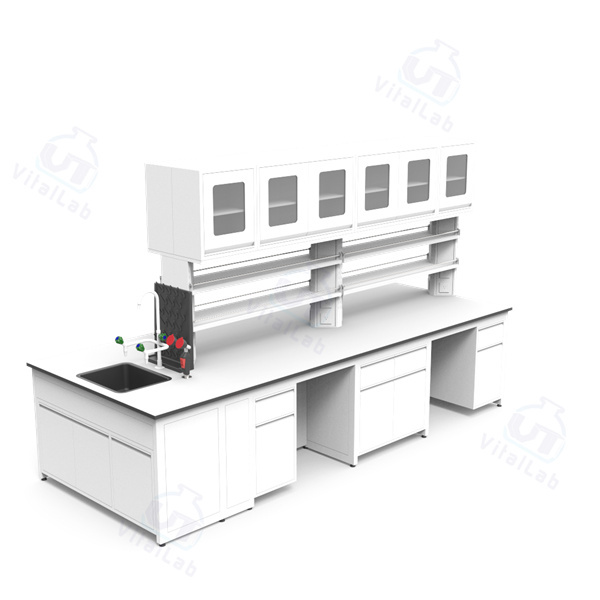

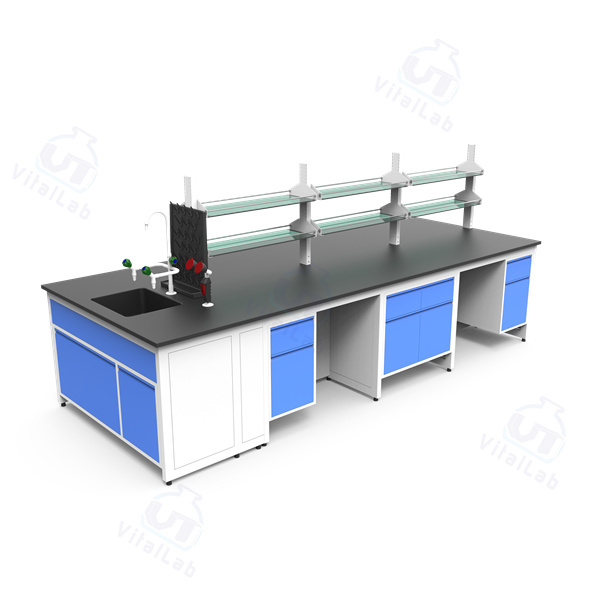

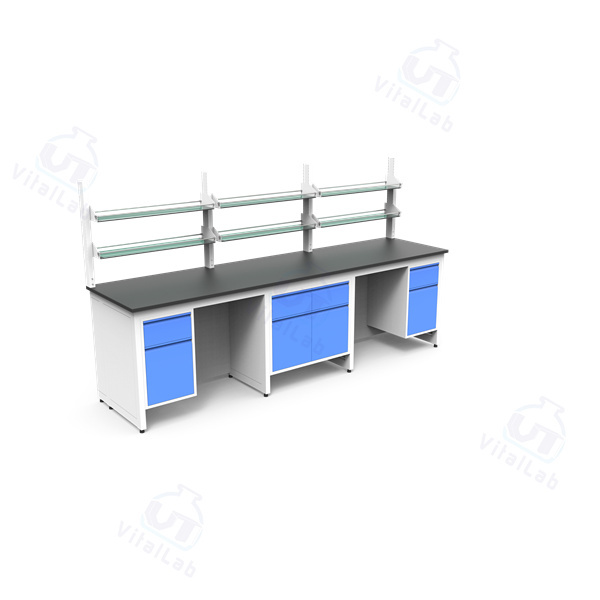

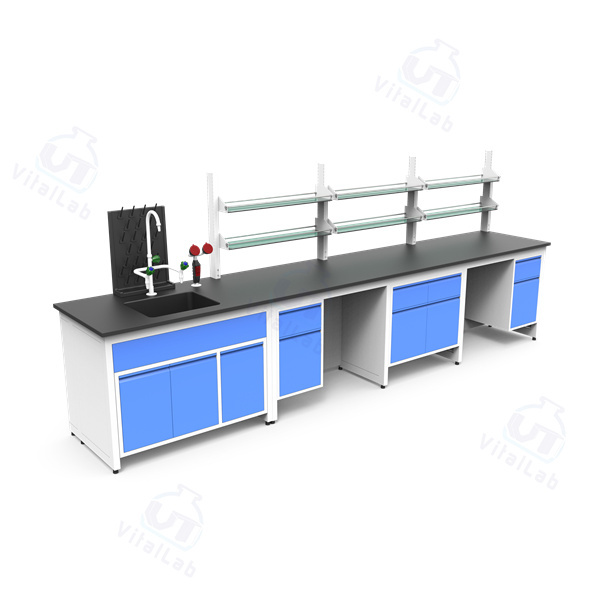

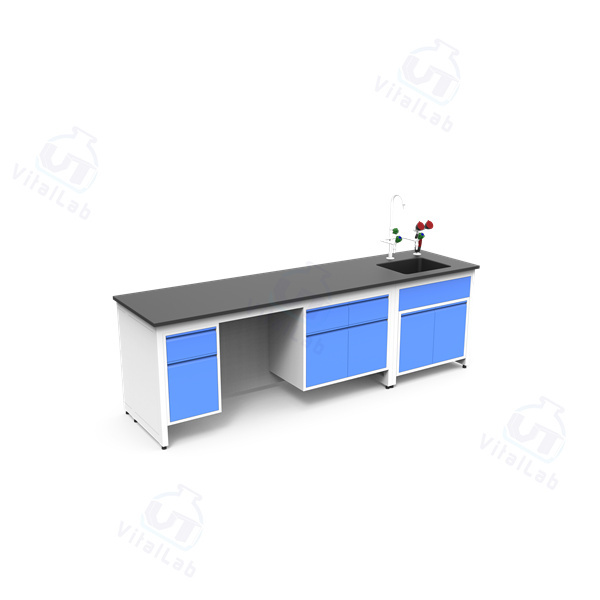

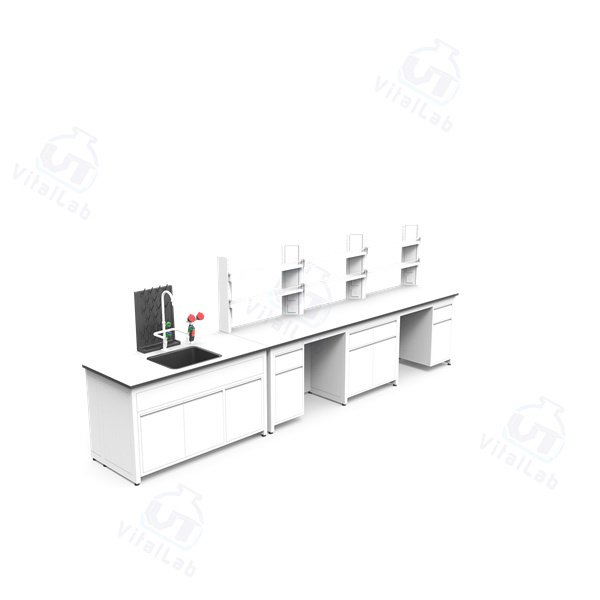

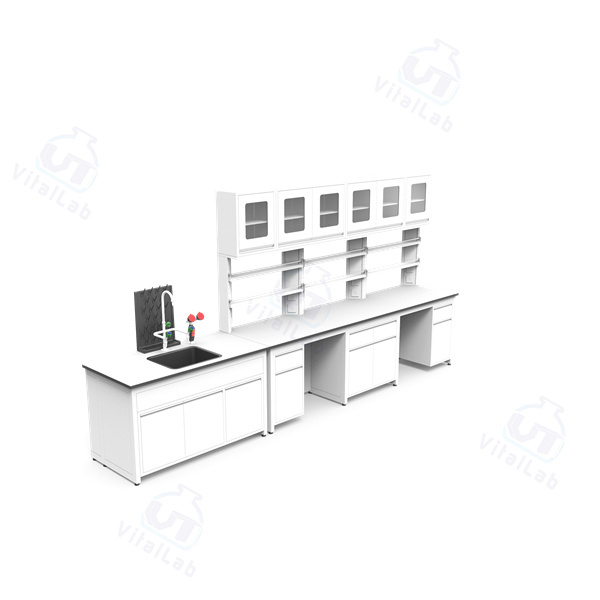

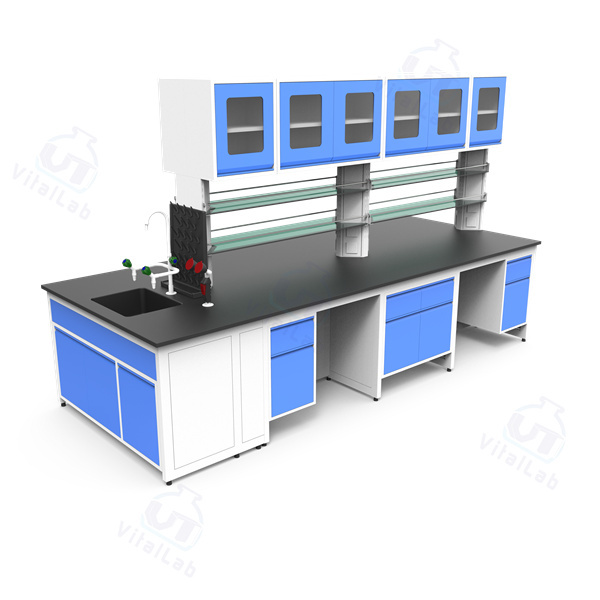

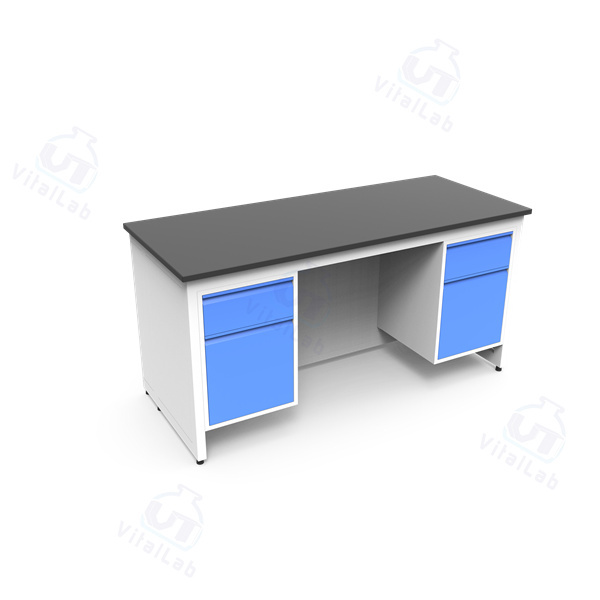

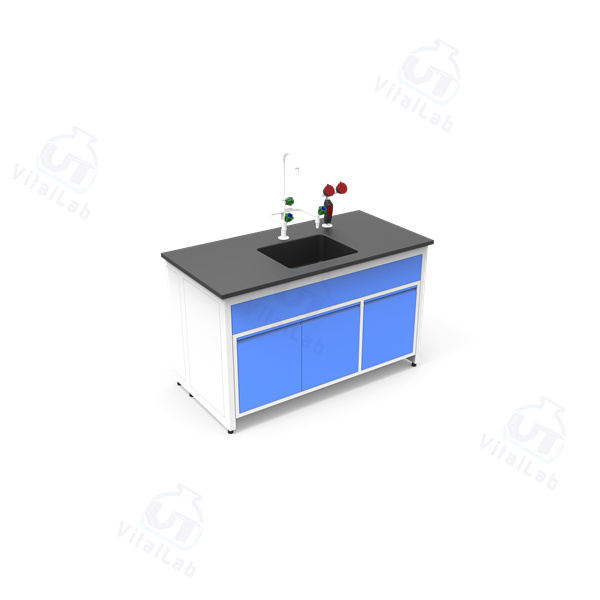

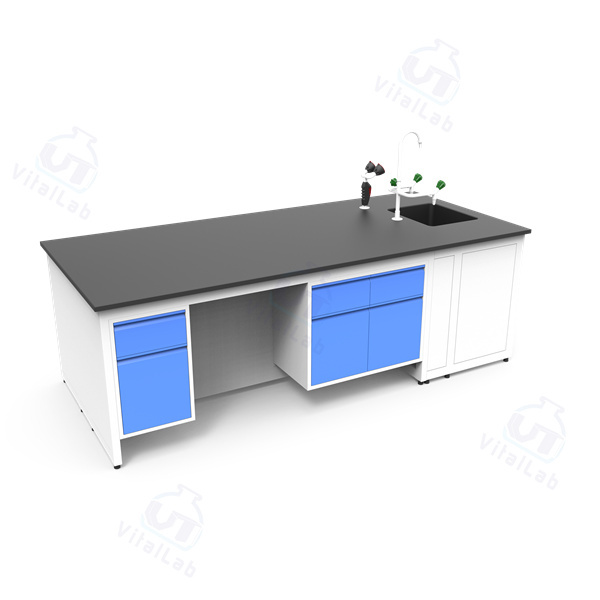

The cabinets of the suspended lab bench are hung on the floor-standing metal frame, the metal frame shape is in the form of C or H. which has good moisture-proof performance. The countertop is supported by the metal frame, and the independent cabinets can be rearranged according to requirements without affecting other parts of the lab bench system.
C-FRAME structure is simple, flexible and versatile, and can be combined freely; H-shaped is dignified and elegant, with good load-bearing performance. C-frame can be equipped with suspended cabinet and push cabinet structures for easy installation and disassembly, which is beneficial for laboratory cleaning work; The steel structure of the H-frame enables the experimental platform to bear a weight of over 500KG, meeting the requirements for the use of large precision instruments.
COUNTERTOPS:
Solid phenolic resin board
Adopts 12.7mm imported solid phenolic resin board with edges thickened to 25.4mm, rounded and polished, in line with ergonomic design. The board is acid and alkali resistant, corrosion resistant, impact resistant, and tough, suitable for high-intensity experimental settings. 16mm, 19mm and 25mm thickness is also available.
Trespa
13mm / 20mm thick TRESPA laboratory top is imported from the Netherlands. The edges are rounded and polished, adhering to ergonomic design. Trespa exhibits features like impact resistance, acid and alkali resistance, corrosion resistance, scratch resistance, easy cleaning, UV resistance, and anti-static properties, making it suitable for high-standard laboratory environments.
Epoxy resin board
15mm / 16mm / 19mm / 25mm Epoxy resin board is formed by one-time molding of epoxy resin, quartz sand, curing agent and pigment. It has characteristics such as high temperature resistance, 24-hour super corrosion resistance, absolute moisture resistance and repairability. It performs excellently under extremely harsh experimental conditions and is suitable for high temperature and high corrosion experimental environments.
Ceramic
15mm / 20mm ceramic main component is natural silicate. Treated with special German-imported corrosion-resistant glaze and calcined at 1250°C by a special process. It has stable properties, non-flammable, excellent flame retardancy, strongest corrosion resistance, better scratch resistance than stone, can withstand 600°C long-term and 1500°C extreme high temperatures, no moisture absorption or deformation, extremely long service life.
FRAME&ACCESSORIES:
Cabinet: Full 1.0mm thick cold-rolled steel plate is finely crafted via cutting, bending, welding, stamping, and polishing. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance. To make thickness reach to 1.1mm - 1.2mm. This treatment method makes the body has good corrosion resistance and stability ability.
Frame: 40*60*1.5mm thickness cold rolled steel rectangle tube treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance C or H frame
Connecting beam: 30*60*1.5mm thickness strong cold-rolled steel front beam. The surface is treated with degreased, pickled, and phosphated for rust prevention, and then electrostatic powder sprayed with epoxy resin protective powder for acid and alkali corrosion resistance.
Back panel: 1.0mm thick high-quality cold-rolled steel plate is used as the base material, and the surface is phosphated, pickled, epoxy resin powder paint treated, and chemically rust-proofed. It also adopts a movable structure and is installed with embedded nuts. It is easy to disassemble and assemble, and is convenient for the maintenance of water, electricity, gas and other pipelines.
Handle: Non-welded one line handle/C-shaped handle/Insertion Aluminum alloy handle/ U-shaped handle.
Slide: DTC 18 inch double fold full pull-out with positioning and anti slip protection silence slide, with 45kgs bear ability.
Hinge:Using high-quality alloy hinges with an opening degree of 110 °. (Pulling bolt hinge: Using a φ 5 galvanized alloy rod, nylon sheath, and φ 6 spring pulling bolt hinge, concealed installation, to maintain the overall appearance of the door panel and avoid corrosion caused by direct contact with acidic and alkaline solutions.)
Footing: Stainless steel/nylon adjustable feet with 30mm adjustable height range, it has primary shock absorption function and good load-bearing capacity.
OPTION MDF WOOD CABINET UNIT
Use E1 grade 18mm thickness double-sided high-quality environmentally friendly melamine door & drawer panel and 15mm thickness main body; all edges are treated with 2mm thickness high-quality PVC sealing for waterproofing, and all panels are connected by detachable three-in-one connection. It has a stable structure, good load-bearing performance and is easy to dismantle, which is conducive to use in the special working environment of the laboratory.
ADVANTAGE
· Contemporary design and distinctive structure.STANDARD DIMENSIONS
|
ITEM |
WALL BENCH |
ISLAND BENCH |
SINK BENCH |
|
DIMENSIONS (L*D*H) |
L*600*850 MM |
L*1200*850 MM |
900*750*850 MM |
|
DIMENSIONS (L*D*H) |
L*750*850 MM |
L*1500*850 MM |
1200*750*850 MM |
|
DIMENSIONS (L*D*H) |
L*600*900 MM |
L*1200*900 MM |
900*750*900 MM |
|
DIMENSIONS (L*D*H) |
L*750*900 MM |
L*1500*900 MM |
1200*750*900 MM |
|
DIMENSIONS (L*D*H) |
CUSTOMIZED |
CUSTOMIZED |
CUSTOMIZED |
